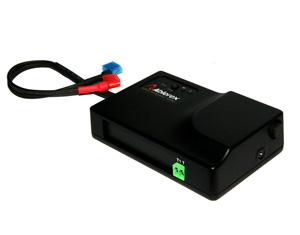

| BMS-BMK Battery Measure Kit |
|

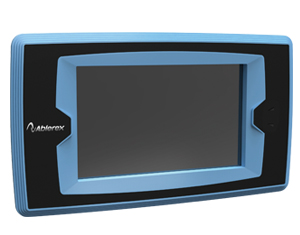

BMS-DC Data Collector |
| Block Voltage |
2V |
6V |
12V |
|
Input Power Supply |
12Vdc, 35~60Vdc |
| Input Impedance |
≧1MΩ |
|
Power Consumption |
18W, Max. |
| Voltage |
Range |
1.5~4V |
4.5~8V |
9~16V |
|
Measurement Communication |
RF 2.4G for Wireless * |
| Accuracy |
±0.5% |
|
| Impedance |
Battery Capacity |
Full range |
<65Ah |
>66Ah |
|
Communication |
Ethernet TCP/IP, RS 485 |
| Resolution |
0.01~0.03mΩ |
0.10mΩ |
0.03mΩ |
|
Alarm Output Contact x1 |
| Temperature *** |
Range |
0~100℃ / 32~212℉ |
|
External Trigger Contact x 1 |
| Accuracy |
±1℃ / 1.8℉ |
|
| Measurement Communication |
RF 2.4G for Wireless * |
|
Max. Monitoring Kits |
256 Kits ** |
| Sample Rate |
1Hz |
|
Display |
6.4” LCD Touch Screen |
| Power Consumption |
0.5W, Max. |
|
Store Media |
SD/MMC Flash Memory Card, 2 Gigabyte |
| Dimensions WxHxD(mm/inch) |
100.0 x 27.3 x 70.0 / 3.94 x 1.07 x 2.76 |
|
| Weight (gs/ozs) |
97 / 3.4 |
|
Dimensions WxHxD(mm/inch) |
378.0 x 249.8 x 81.3 / 14.9 x 98.3 x 32.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Weight (kgs/lbs) |
3 / 6.6 |
|
|
|
|
|
|
|
|
|
| BMS-SMK String Measure Kit |
|
Accessories |
| Input Impedance |
≧1MΩ |
|
BMS-DPS |
DC Power Supply |
| Voltage |
Range |
Up to 960V |
|
Input: 90~260Vac |
| Accuracy |
±0.5% |
|
Output: 48Vdc, 15Watt |
| Current **** |
Range |
Up to 3000A |
|
BMS-TES |
Temperature Senor |
| Resolution |
±3% |
|
0~100℃ ±1℃ / |
| Temperature *** |
Range |
0~100℃ / 32~212℉ |
|
32~212℉ ± 1.8℉ |
| Accuracy |
±1℃ / 1.8℉ |
|
Hall effect Current Transformer |
| Measurement Communication |
RF 2.4G for Wireless* |
|
| Sample Rate |
1Hz |
|
BMS-HCT |
50A, 100A, 300A, |
| Input Power Supply |
36~60Vdc |
|
600A, 2000A |
| Power Consumption |
3.0W, Max. |
|
BMS-BTA |
Battery Terminal Auxiliary |
| Dimensions WxHxD(mm/inch) |
100.0 x 27.3 x 70.0 / 3.94 x 1.07 x 2.76 |
|
Connector 6Φ, 8Φ, 10Φ |
| Weight (gs/ozs) |
89 / 3.1 |
|
BMS-ANT |
2.4G Antenna |
|
|
|
|
|
|
|
|
|
| * The maximum distance of transmission is 50 meters for open site and less then 30 meters is recommended. |
|
| ** The total number of Battery Measure Kit and String Measure Kit would not be more than 256. |
|
| *** An additional temperature sensor is required for temperature measurement. |
|
|
|
| **** An additional current transformer is required for current measurement. |
|
|
|
|
