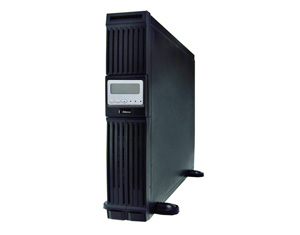

| Model |
JCXL1000 |
JCXL1500 |
JCXL2200 |
JCXL3000 |
| Input |
Voltage Window |
110/120/127Vac or 220/230/240Vac +/-25% |
| Frequency(Hz) |
45~65(auto-sensing) |
| Phase |
Single |
| Output |
Voltage |
110/120/127Vac or 220/230/240Vac +/-5% |
| Capacity (VA/W) |
1000/900 |
1500/1350 |
2200/1980 |
3000/2700 |
| Frequency |
50/60Hz Auto-sensing |
| Output Waveform |
Pure Sine Wave |
| Transfer Time (AC to DC) |
50Hz / 60Hz ±0.1% unless synchronized to line |
| Efficiency |
90% (Line mode) |
| DC Start |
Yes |
| Battery |
Number of batteries |
4 |
4 |
8 |
8 |
| Type |
Sealed Lead Acid Maintenance-free |
| Capacity |
12V/7AH |
12V/9AH |
12V/7AH |
12V/9AH |
| Rated Battery Voltage |
24Vdc |
48Vdc |
| Backup time (full load) |
5 minutes as minimum |
| Recharge Time (to 90%) |
5 hours |

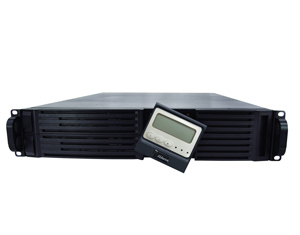

| Display |
Status on LCD |
Line bypass, AVR Boost(Buck), Backup, Battery Level, Battery Low, Load |
| Level, Battery Fault, UPS Fault, etc. |
| d |
Line Mode, Battery Mode & Fault |
| Self-diagnostics |
Upon Power On and Software Control |
| Alarms |
Audible and Visual |
Mains Fault, Low Battery, Overload and Fault conditions |
| Protection |
Overload |
>100%-110% buzzer alarms only |
| >110%-120% for 10 min. and then shutdown |
| >120% shutdown after 1 cycle |
| Short Circuit |
Output Breaker/Electronic Circuit |
| EPO |
Output shuts down immediately |
| Over Temperature |
96W |
108W |
192W |
216W |
| Physical |
Dimensions (HxWxD in mm) |
88x440x485 |
88x440x694 |
| Weight(Kgs) |
120Vac |
25 |
27.8 |
41.8 |
47.8 |
| 230Vac |
25 |
27.8 |
42 |
46.2 |

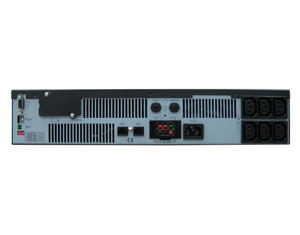

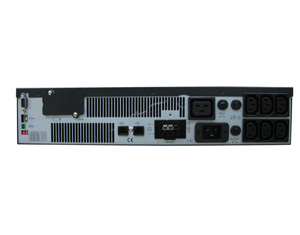

| Outlet |
120Vac |
(6) NEMA 5-15R |
| 230Vac |
(6) IEC-320-C13 |
|
(6) IEC-320-C13, (1) IEC-320-C19 |
|
| Environment |
Operating Temperature |
0~40℃ |
| Noise Level |
<45dBA |
| Altitude |
2000 m without de-rating |
| Humidity |
0 to 90% (Without condensation) |
| Interface |
Interface Type |
Standard RS232 and USB |
| Communication slots |
Relay card, SNMP/Web Card |
| Compatible Platforms |
Microsoft Windows series, Linux, Mac, etc. |
| Standards and Certifications |
Safety |
EN62040-1-1,UL1778 |
| Standard EMC |
EN62040-2, EN61000-3-2, FCC Class A |
| Markings |
CE, UL, cUL, FCC ** |
*Specifications subject to change without notice.
**Depending on the model and voltage, more informaion please contact with Ablerex
|
|
|
