| MODEL |

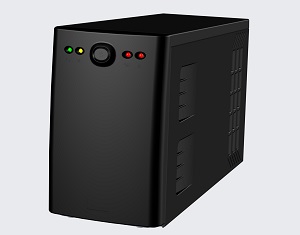

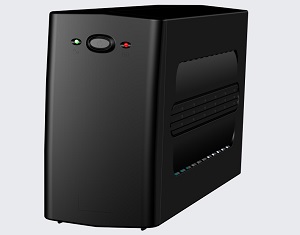

LED |
VT Plus 500 |
VT Plus 650 |
VT Plus 1000 |
VT Plus 1500 |
|

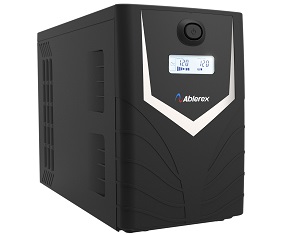

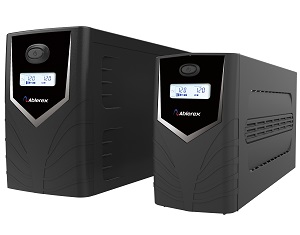

LCD (Option) |
VT Plus 500 |
VT Plus 650 |
VT Plus 1000 |
VT Plus 1500 |
| INPUT |
Voltage Range(VAC) |
160 ~ 287VAC |
| Frequency Range(Hz) |
50 / 60Hz ± 5Hz (auto sensing) |
| OUTPUT |
Capacity(VA/W) |
525 / 315 |
625 / 375 |
1000 / 600 |
1500 / 900 |
| Voltage(VAC) |
230VAC |
| Voltage Range(VAC) @ Battery Mode |
230VAC ± 5% |
| Frequency Range(Hz) @ Battery Mode |
50 / 60Hz ± 1Hz (default 50Hz) |
| Transfer Time |
2 ~ 6ms (typical), 10ms (max.) |
| Waveform @ Battery Mode |
Simulated sinewave (stepped sinewave) |
| BATTERY |
Battery Type |
VRLA, sealed lead acid maintenance free |
| Capacity and Number |
12V / 7Ah x 1 |
12V / 7Ah x 1 |
12V / 7Ah x 2 |
12V / 9Ah x 2 |
| Voltage(Vdc) |
12 |
12 |
24 |
24 |
| Typical Charger Time |
6 ~ 8 hours recover to 90% capacity |
| INDICATOR |
LED |
2 LEDs: Line / Battery mode and Fault |
4 LEDs: Line / Inverter / Overload / Battery mode and Fault |
| LCD (Option) |
Line mode, AVR mode, Battery mode, Battery capacity, Load level, Input voltage, Output voltage, Fault and Battery weak |
| ALARM |
Audible or Visual |
Battery mode, Low Battery, Overload and Fault |
| OUTLET |
Backup |
(3) IEC 320-C13 |
(6) IEC 320-C13 |
| Surge |
(1) IEC 320-C13 |
(2) IEC 320-C13 |
| PROTECTION |
Full Protection |
Overload, Discharge, Overcharge, ABDM, Short circuit and RJ-11 / RJ-45 surge protection |
| FUNCTION |
DC Start |
Yes |
| AC Auto Restart |
Yes |
| Plug-in Charging |
Yes |
| ABDM |
Yes |
| A.V.R |
Boost x 1 and Buck x 1 |
| PHYSICAL |
Dimensions (WxHxD in mm/inch) |
95 x 171 x 356 / 3.7 x 6.7 x 14.0 |
147 x 234 x 360 / 5.8 x 9.2 x 14.2 |
| Net Weight (kgs) |
6.0 / 13.2 |
6.5 / 14.3 |
10.3 / 22.7 |
12.0 / 26.5 |
| Shipping Weight (kgs) |
7.0 / 15.4 |
7.5 / 16.5 |
12.3 / 27.1 |
14.0 / 30.9 |
| ENVIRONMENT |
Operation Temperature |
0 ~ 40°C / 32 ~ 104℉ |
| Storage Temperature |
-15 ~ 40°C / 5 ~ 104℉ |
| Operation Humidity |
0 ~ 90%RH, non-condensing |
| Altitude |
1000meters without derating |
| Noise Level |
< 40dBA @ 1 meter front |
| COMMUNICATION |
Interface (Option) |
USB |
| Compatible Platforms |
Microsoft Windows series, Linux, Mac, etc. |
STANDARDS &
CERTIFICATIONS** |
Safety |
IEC EN 62040-1 |
| EMC |
IEC EN 62040-2 |
| Marks |
CE |
|
| * Specifications subject to change without notice, and the final explanation rights are reserved by Ablerex. |
| ** Depending on the model and rating voltage, please contact Ablerex for more information. |
| *** The same technical specification may be sold in diferent countries under different model names, please consult Ablerex for more information. |
