| Model Name |
Rating |
AC Input Plug
(Receptacle) & cord length |
Connect to
UPS Input |
Connection to UPS Output
& cord length |
Output Receptacles
/protection |

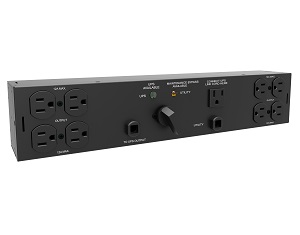

| RacPDU-115A |
120V 1KVA |
NEMA 5-15P
Attached power cord |
NEMA
5-15P |
NEMA 5-15P x1 Attached power cord |
NEMA 5-15R x 8 |

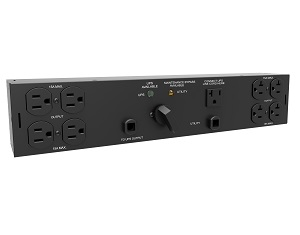

| RacPDU-120B |
120V 2KVA |
NEMA 5-20P
Attached power cord |
NEMA
5-20P |
NEMA 5-20P x 1 Attached power cord |
NEMA 5-15R x 4
NEMA 5-20R x 4 |

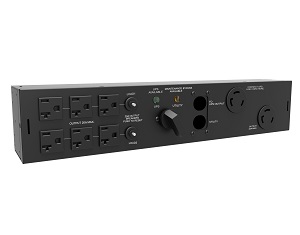

| RacPDU-130H |
120V 3KVA |
NEMA L5-30P
Attached power cord |
NEMA
L5-30P |
NEMA L5-30P x 1 Attached power cord |
NEMA 5-20R x 6 with 20A circuit breaker x 2
+ NEMA L5-30R x 1 |

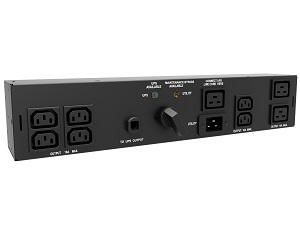

| RacPDU-210D |
230V 1K-2KVA |
N/A |
IEC C14 |
IEC C14 x 1 Attached power cord |
IEC C13x 8 |

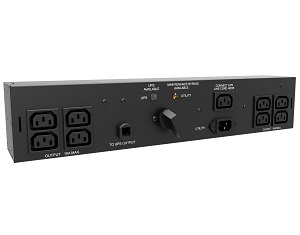

| RacPDU-216G |
230V 3KVA |
N/A |
IEC C20 |
IEC C20 x 1 Attached power cord |
IEC C19x 2
IEC C13x 6 |
| RacPDU-230F |
230V 4.5K/6KVA |
Terminal |
NEMA
L6-30R |
Terminal |
Terminal |

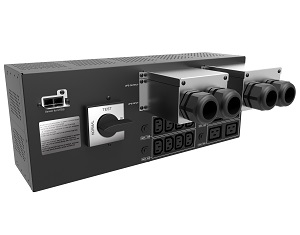

| MPDU-250 |
230V 4.5K-10KVA |
Terminal |
Terminal |
Terminal |
Terminal + IEC C19 x 4 + IEC C13 x 8 |
