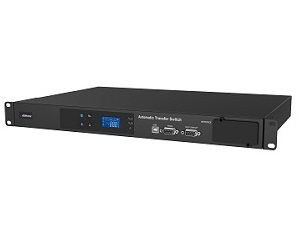

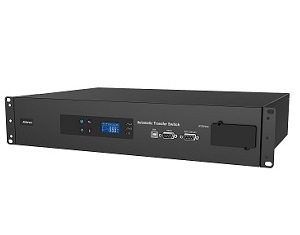

Model		ATS-216	ATS-232	ATS-120	ATS-130
Input	Input Voltage	200/208/220/230/240(±5%/10%/15%/20%)		100/110/115/120/127(±5%/10%/15%/20%)
	Acceptable Input Voltage	150Vac~300Vac		75Vac~150Vac
	Input Frequency	50/60Hz(±5%/10%/15%/20%)
	Maximum Input Current	16A	32A	20A	30A
Output	Output Voltage	200/208/220/230/240		100/110/115/120/127
	Maximum Output Current	16A	32A	20A	30A
	Overload Protection	Yes
	Efficiency	99%(with full linear load)
Connection	Input	(2) IEC-C20	Terminal	(2) NEMA 5-20	(2) NEMA L5-30
	Output	(8) IEC-C13, (1) IEC-C19	(16) IEC-C13, (2) IEC-C19	(8) NEMA 5-15/20	(16) NEMA 5-15/20R, (1) NEMA L5-30R
Interface	Standard Port	RS-232, USB, Dry Contact
	Communication Slot	SNMP and RS-485 Card
Display	Status on LED + LCD	Source A, Source B, Fault, Overload, Alarm, Silence
	LCD	Voltage, Current, Frequency, Load Percentage, Error Code
Physical	Dimensions (WxHxD, mm/inch)	440x44x275 / 17.5x1.75x10.83	440x88x275 / 173x3.5x10.83	440x44x275 / 17.5x1.75x10.83	440x88x275 / 173x3.5x10.83
	Net Weight (kgs/Ibs)	4 / 8.8	6 / 13.2	4 / 8.8	6 / 13.2
Environment	Operating Temperature	-5~40∘C
	Humidity	20 to 90% (Without Condensation)
	Altitude	0 ~ 3000 meters
Standards Compliance	Safety	IEC 60950-1		UL 60950-1/CAN/CSA C22.2 No. 60950-1
	EMC	EN 55022+EN 55024		FCC Part 15



* Specifications subject to change without notice.
