Wireless Communication
Easy Installation & Save Cost
Graphic LCD Touch Screen
Real Time Monitoring : Block Voltage, Block Impedance, Temperature, String Voltage & Current

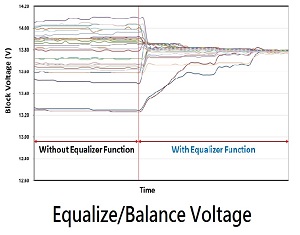

Equalize and Balance Block Voltage
Extend Battery Life Time
Alarm via Email & Dry Contact
Build in Storage Memory for Battery History Database
Colorful Bar / Curve Diagrams
User-default Configurations & Deviation Levels

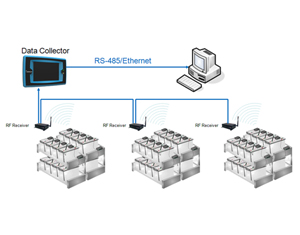

Provides Ethernet/RS-485 for Remote Monitoring

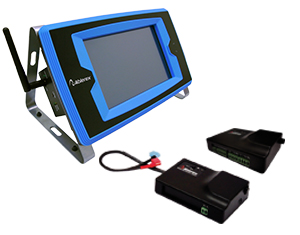

BMS-BMK Battery Measure Kit

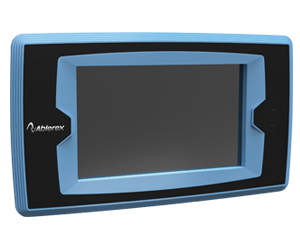

BMS-DC Data Collector
Block Voltage
2V
6V
12V
Input Power Supply
12Vdc, 35~60Vdc
Input Impedance
≧1MΩ
Power Consumption
18W, Max.
Voltage
Range
1.5~4V
4.5~8V
9~16V
Measurement Communication
RF 2.4G for Wireless *
Accuracy
±0.5%
Impedance
Battery Capacity
Full range
<65Ah
>66Ah
Communication
Ethernet TCP/IP, RS 485
Resolution
0.01~0.03mΩ
0.10mΩ
0.03mΩ
Alarm Output Contact x1
Temperature ***
Range
0~100℃ / 32~212℉
External Trigger Contact x 1
Accuracy
±1℃ / 1.8℉
Measurement Communication
RF 2.4G for Wireless *
Max. Monitoring Kits
256 Kits **
Sample Rate
1Hz
Display
6.4” LCD Touch Screen
Power Consumption
0.5W, Max.
Store Media
SD/MMC Flash Memory Card, 2 Gigabyte
Dimensions WxHxD(mm/inch)
100.0 x 27.3 x 70.0 / 3.94 x 1.07 x 2.76
Weight (gs/ozs)
97 / 3.4
Dimensions WxHxD(mm/inch)
378.0 x 249.8 x 81.3 / 14.9 x 98.3 x 32.0
Weight (kgs/lbs)
3 / 6.6
BMS-SMK String Measure Kit
Accessories
Input Impedance
≧1MΩ
BMS-DPS
DC Power Supply
Voltage
Range
Up to 960V
Input: 90~260Vac
Accuracy
±0.5%
Output: 48Vdc, 15Watt
Current ****
Range
Up to 3000A
BMS-TES
Temperature Senor
Resolution
±3%
0~100℃ ±1℃ /
Temperature ***
Range
0~100℃ / 32~212℉
32~212℉ ± 1.8℉
Accuracy
±1℃ / 1.8℉
Hall effect Current Transformer
Measurement Communication
RF 2.4G for Wireless*
Sample Rate
1Hz
BMS-HCT
50A, 100A, 300A,
Input Power Supply
36~60Vdc
600A, 2000A
Power Consumption
3.0W, Max.

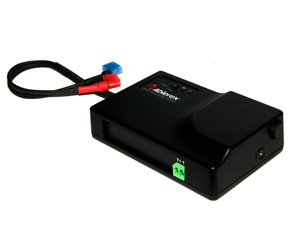

BMS-BTA
Battery Terminal Auxiliary
Dimensions WxHxD(mm/inch)
100.0 x 27.3 x 70.0 / 3.94 x 1.07 x 2.76
Connector 6Φ, 8Φ, 10Φ
Weight (gs/ozs)
89 / 3.1

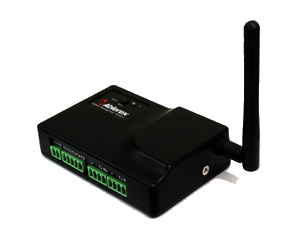

BMS-ANT
2.4G Antenna
* The maximum distance of transmission is 50 meters for open site and less then 30 meters is recommended.
** The total number of Battery Measure Kit and String Measure Kit would not be more than 256.
*** An additional temperature sensor is required for temperature measurement.
**** An additional current transformer is required for current measurement.
