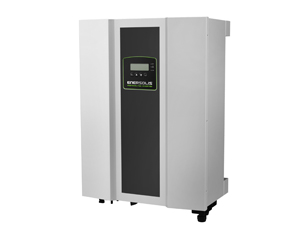

| Model |
|
|
ES 6000 |
ES 8000 |
ES 10000 |
ES 12000 |
| Inverter Technology |
Conversion Mode |
Sine-wave, Current source, High frequency PWM |
| Isolation Method |
Transformer-less Design |
| DC Input Data |
Nominal DC Voltage |
620 Vdc |
| Max. DC Input Voltage |
1000 Vdc |
| Working Range |
300 ~ 1000 Vdc |
| Max. DC Input current |
2 x 8 .5 Amp |
2 x 11 .4 Amp |
2 x 14 .3 Amp |
2 x 14 .3 Amp |
| MPPT Range |
370 ~ 850 Vdc |
450~850 Vdc |
| MPPT Tracker |
2 |
| AC Output Data |
Nominal AC Power |
6,000 Watt |
8,000 Watt |
10,000 Watt |
12,000 Watt |
| Max. AC Apparent Power |
6,600 VA |
8,800 VA |
11,000 VA |
12,000 VA |
| Nominal AC Voltage |
11,000 VA |
| Output Connect Method |
3-Phase / 4-Wires (L1, L2, L3, N, PE) |
| Nominal AC Current |
8.69 Amp x 3 |
11.59 Amp x 3 |
14.49 Amp x 3 |
17.39 Amp x 2 |
| Frequency |
50/60Hz Auto-Selection (47.5 ~ 51.5Hz or 59.3 ~ 60.5Hz) |
| Power Factor |
Leading 0.9 ~ Lagging 0.9 |
| Current Distortion |
Total Harmonic current : Less than 5% |
| Single Harmonic current: Less than 3% |
| Efficiency Data |
Max. Efficiency |
97.60% |
| Euro Efficiency |
96.20% |
96.60% |
97.00% |
97.25% |
| Environmental |
Operating Temperature |
-20 °C ~ +60 °C |
| -4 °F ~ 139 °F |
| Pollution degree classification |
PD3 |
Overvoltage category
(IEC 60664 - 1) |
DC side |
Category II |
| AC side |
Category III |
| Humidity |
0 to 100% (Without condensation) |
| Altitude |
0 ~ 2000 m / 0 ~ 6600 ft |
| Mechanical |
Dimensions
(H x W x D in mm / inch) |
451 x 595 x 247 / 17.7 x 23.4 x 9.72 |
| Net Weight (kg / lbs) |
41 / 90.4 |
| Gross Weight (kg / lbs) |
44 / 97.0 |
| Protection Class |
IP65, outdoor |
| Cooling |
Temperature-dependent fan |

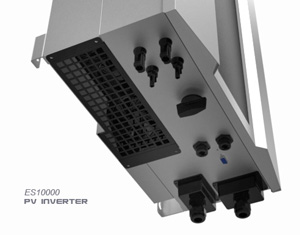

| AC Connection |
Connector |
| DC Connection |
Connector |
| Communication |
Communication Interface |
RS232 & RS485 (Standard) |
| USB, RS485, Dry contact, TCP/IP (Optional) |
| Front Panel |
LCD |
Boost input Voltage、Boost input Current、Boost input Power、AC output Voltage、AC output frequency、AC output current 、AC output power、AC Energy yield、Inner Temperature、Heat sink Temperature 、Status message、 Error message |
|
|
| LED |
Red |
On: Ground fault of DC input insulation fault |
| Yellow |
On: Unit Error or Alarm |
| Green |
Flash: Standby or Sleeping mode |
| On: Normal operation |
| Key Pad |
UP key/ Down key/ Function key/ Enter key |
| Protection |
Utility |
Over/under Voltage, Over/under Frequency, |
| Ground fault, DC Isolation fault |
| Islanding operation detection |
Passive : Voltage phase jump detection |
| Active : Reactive power control |
| Over Temperature |
Reduced output power |
| Certification |
On Grid Performance |
VDE 0126-1-1, VDE AR-N 4105, AS 4777.2/3, ENEL 2010 |
VDE 0126-1-1,
VDE AR-N 4105 |
| Safety |
EN62109-1, EN 62109-2, EN 60730, AS 3100 |
EN 62109-1,
EN 62109-2,
EN 60730 |
| EMI/EMC |
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3,
EN 61000-3-2, EN 61000-3-3 |
EN 61000-6-2,
EN 61000-6-4,
EN 61000-3-2,
EN 61000-3-3 |
| *Specifications subject to change without notice. |
