| Model |

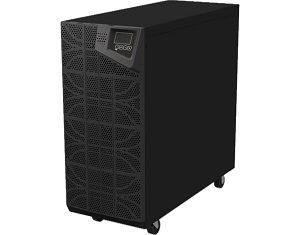

Tower |
MP4 4500 |
MP4 6000 |
MP4 8000 |
MP4 10000 |
| RT |
MP4 4500 RT |
MP4 6000 RT |
MP4 8000 RT |
MP4 10000 RT |
| INPUT |
Voltage Range |
110~280 ±5 Vac, Single Phase 2-Wire with PE
110~176 Vac with de-rating 50 ~100% |
| Frequency |
40 - 70 Hz, 40 - 60Hz @50Hz or 50 - 70Hz@60Hz by auto-sensing |
| Phase (IN:OUT) and Wiring |
1 : 1 / 2-wire + G |
| Power Factor |
>0.99 (Full load) |
| Harmonic Distortion, iTHD |
< 5% @Norminal Voltage (full load) |
| OUTPUT |
Capacity |
4500VA |
6000VA |
8000VA |
10000VA |
| W |
4500W |
6000W |
8000W |
10000W |
| Voltage |
200/208/220/230/240 Vac, Rated 230V
200Vac with de-rating 80% |
| Voltage Regulation |
±1% |
| Frequency |
50 / 60 ±0.1Hz |
Frequency Range
(Synchronized Range) |
±3Hz Low Sensitivity, 47~ 53Hz or 57 ~63Hz
±1Hz High Sensitivity., 49~ 51Hz or 59 ~61Hz |
| Crest Factor |
3:1 |
| Harmonic Distortion, vTHD |
< 2% (Linear load) |
| EFFICIENCY |
Line mode (full charged battery) |
Up to 94% |
Up to 95% |
| Battery mode |
Up to 94% |
Up to 95% |
| ECO mode (full charged battery) |
Up to 98% |
Up to 98% |
| BATTERY |
Battery type |
Lead-acid, VRLA 12Vdc |
| Numbers |
20 / 18 / 16 PC |
| Battery Voltage |
240 / 216 / 192 Vdc |
| CHARGING |
Charge
Current |
Standard |
Up to 2A, adjustable |
| Optional |
Up to 4A, adjustable |
| Charging Voltage |
273Vdc ± 1%, Programmable Range 208~273Vdc |
| Transfer time |
AC to DC |
0 ms |
| Protection |
Full Protection |
Overload；Emergency Power-off, EPO；Output Short-circuit；OTP |
| Physical |
Dimensions
W x H x D
mm(in.) |
RT PM model: mm( inch)
Power Module only |
440 x 88 x 700
(17.3 x 3.5 x 27.6) |
| RTC model: mm(inch) |
440 x 176 x 700
(17.3 x 6.9 x 27.6) |
440 x 220 x 700
(17.3 x 8.7 x 27.6) |
| Tower: mm(inch) |
288 x 686 x 732
(11.3 x 27.0 x 28.8) |
Net Weight
kg(lb.) |
RT PM model: kg( lb) Power Module only |
16.2 (35.7) |
18.2 (40.1) |
| RTC model:kg(lb) |
54 (119), with Battery(5Ah)
18 (39.7), without Battery |
74.5 (164.2), with Battery(9Ah)
22.5 (49.6), , without Battery |
Tower
model |
W/O TX |
83.5 (184.1), with Battery(9Ah)
31.5 (69.4), without Battery |
85.5 (188.5), with Battery(9Ah)
33.5 (73.8), without Battery |
| W/ TX |
116.5 (256.8), with Battery(9Ah)
64.5 (142.2), , without Battery |
131.5 (289.9), with Battery(9Ah)
79.5 (175.3), without Battery |
| Interface |
Standard |
RS232, USB, EPO/ROO |
| Option |
Slot Cards: SNMP, DCE, RS485 ; Battery Temp.-comp. |
| Compatible Platforms |
Microsoft Windows series, Linux, Mac, etc. |
| Environmental |
Temperature |
Operating |
0ºC ~ 40ºC (32ºF to 104ºF) |
| Storage/non-operation |
-10ºC ~ 50ºC (14ºF to 122ºF) |
| Relative Humidity |
<95%RH @0ºC ~ 40ºC (non-condensing) |
| Ingress Protection Rating |
IP20 |
| Operating Elevation |
0 to +2,000 m without derating of output power |
| Audible Noise |
60 dB @1 Meter
Fan Silent**: 34dB to 47dB(Line/ECO)/ 55dB(Backup) |
| Pollution Degree |
2(non-conductive, temporary conductivity caused by condensation) |
| Overvoltage Category |
CAT Ⅱ |
| Standards and Certifications |
Safety |
IEC/EN 62040-1, UL1778 |
| EMC |
EN IEC 62040-2:2018 C3, C2(option)**** |
| FCC |
FCC Part15 Class A |
| Markings |
CE, UL/cUL |
| * 8/10K Model: 16PC-PF0.8, 18PC-PF0.9 |
| **Comfort Environmental(25ºC) & Normally Line or Battery Voltage Automatically. |
| *** The battery life will reduce when >25 ºC(VRLA) |
| ****According to IEC 62040-2 regulations, Output power cords with a total length of up to 3 meters are exempt from testing for output surges. |
|
| * Specifications subject to change without notice, and the final explanation rights are reserved by Ablerex. |
| ** Based on load precentage. |
| *** The same technical specification may be sold in diferent countries under different model names, please consult Ablerex for more information. |
|
