| MODEL |

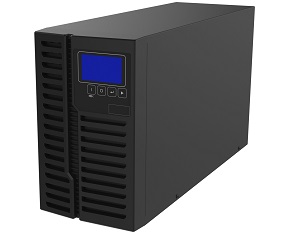

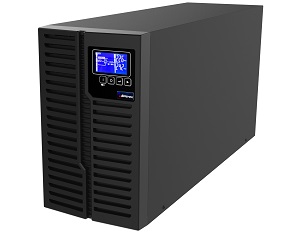

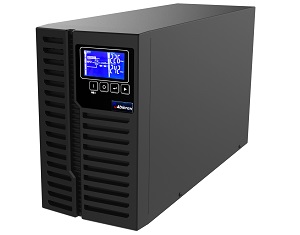

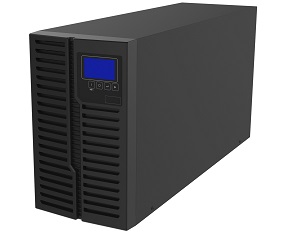

TOWER |
AP2 1000 |
AP2 2000 |
AP2 3000 |
| RT |
AP2 RT 1000 |
AP2 RT 2000 |
AP2 RT 3000 |
| Input |
Voltage Rating |
110Vac~300Vac , Single Phase |
| Frequency Rating |
40-70 Hz
50Hz fin> 40Hz and fin < 60Hz
60Hz fin> 50Hz and fin < 70Hz |
| Phase |
Single phase with ground |
| Power Factor |
≧ 0.99 at full linear load |
| Current harmonic distortion (ITHD) |
ITHD < 5% (Nominal voltage with <1% VTHD for 100% linear load) |
| Output |
Capacity(VA/W) |
1000 / 1000 |
2000 / 2000 |
3000 / 3000 |
| Voltage |
230 Vac, adjustable to 200/208/220/230/240 Vac
(200Vac / 208Vac with 80% power capacity derating) |
| Voltage Regulation |
Static：within ±1% until low-battery warning |
| Frequency Regulation |
±0.1Hz unless synchronized to line |
Frequency
(Synchronized Range) |
50Hz system 47Hz ~ 53Hz (selectable: 49Hz ~ 51Hz)
60Hz system 57Hz ~ 63Hz (selectable: 59Hz ~ 61Hz) |
| Crest Factor |
3：1 |
| Voltage Harmonic Distortion(VTHD) |
< 2% at full linear load
≤3.5% at 0.9 non-linear load |
| Output Waveform |
Pure sine wave |
| Efficiency |
Line mode |
>90% |
>91% |
>92% |
| Battery mode |
>87% |
>88% |
>89% |
| ECO mode |
>96% |
>97% |
>97% |
| Battery |
Lead-Acid Battery |
Battery System Voltage |
36Vdc |
72Vdc |
72Vdc |
| Number of batteries |
3 |
6 |
6 |
| Battery type |
12Vdc /7Ah or 12Vdc /9Ah |
12Vdc /7Ah or 12Vdc /9Ah |
12Vdc /7Ah or 12Vdc /9Ah |
| Lithium Battery |
Battery System Voltage |
38.4Vdc |
76.8Vdc |
76.8Vdc |
| Number of batteries |
3 (12.8Vdc series) |
2 (76.8Vdc parallel) |
3 (76.8Vdc parallel) |
| Battery type |
12.8Vdc /6Ah or 12.8Vdc /9Ah |
76.8Vdc /3Ah (battery pack) |
76.8Vdc /3Ah (battery pack) |
| Charger |
Charge
Current |
Standard |
1A / 2A selectable |
| Optional |
1A / 2A / 4A / 8A selectable |
| Recharge time (to 90%) |
5hr (2A Charging Current For Internal Battery) |
Charge
Voltage |
Lead-Acid Battery |
40.95Vdc ± 1% |
81.9Vdc ± 1% |
81.9Vdc ± 1% |
| Lithium Battery |
42Vdc ± 1% |
84Vdc ± 1% |
84Vdc ± 1% |
| Transfer time |
AC to DC |
0 ms |
| Outlet |
Programmable Outlet (Optional) |
IEC320 C13 (3) x 1 |
IEC320 C13 (3) x 2 |
IEC320 C13 (3) x 2 |
| Protection |
Full Protection |
Overload；EPO；Site Wiring Fault |
| Physical |
Dimensions
W x H x D
mm (in.) |
RT model |
440x88x454
(17.3x3.5x17.9) |
440x88x640
(17.3x3.5x25.2) |
440x88x640
(17.3x3.5x25.2) |
| Tower model |
154x258.2x445
(6.1x10.2x17.5) |
192x319.9x620
(7.6x12.6x24.4) |
192x319.9x620
(7.6x12.6x24.4) |
Net Weight
kg (lb.) |
RT
model |
with battery |
14.8 (32.6) |
24.4 (53.8) |
27.0 (59.5) |
| without battery |
8.5 (18.7) |
11.8 (26.0) |
12.3 (27.1) |
Tower
model |
with battery |
13.8 (30.4) |
24.1 (53.1) |
26.2 (57.8) |
| without battery |
7.5 (16.5) |
11.5 (25.4) |
11.5 (25.4) |
| Interface |
Standard |
RS232、USB、EPO/ROO |
| Option(Mini slot) |
SNMP card、Relay card、RS485 card、Temperature Compensation |
| Compatible Platforms |
Microsoft Windows series, Linux, Mac, etc. |
| Environmental |
Operating Temperature |
0ºC ~ 40ºC (32ºF to 104ºF) |
| Non-operating/Storage Temperature |
UPS without Batteries: -10 ~ 50 ºC (+14 to +122ºF)
UPS with Lead-Acid Batteries: -10 ~ 40 ºC (+14 to +104ºF)
UPS with Lithium Batteries: -10 ~ 35 ºC (+14 to +95ºF) (<6 months) |
| Relative Humidity |
<95% RH @ 0ºC ~ 40ºC (Non-condensing) |
| IP Rating |
IP 20 |
| Operating elevation |
0 to +2,000 m without derating of output power |
| Pollution Degree |
2 (non conductive pollution, temporary conductivity caused by condensation) |
| Overvoltage Category |
CAT II |
Applicable power grid power
distribution system |
TN |
| Standards and Certifications |
Safety |
IEC/EN 62040-1 |
| EMC |
EN IEC 62040-2:2018 C2 |
| Markings |
CE |
|
| * Specifications subject to change without notice, and the final explanation rights are reserved by Ablerex. |
| ** Based on load precentage. |
| *** The same technical specification may be sold in diferent countries under different model names, please consult Ablerex for more information. |
|
