| MODEL |

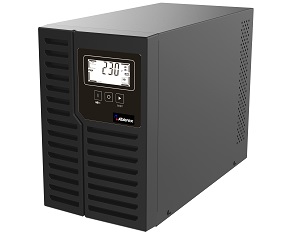

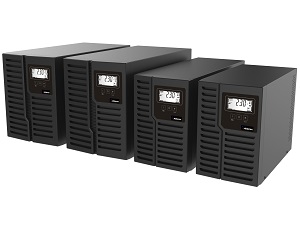

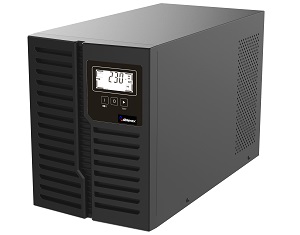

TOWER |
AE2 1K 230V |
AE2 2K 230V |
AE2 3K 230V |
| RT |
AE2 RT 1K 230V |
AE2 RT 2K 230V |
AE2 RT 3K 230V |
| INPUT |
Phase |
Single phase with ground |
| Voltage Range(VAC)** |
110 / 150 / 180 ~ 300VAC
(180-300 VAC: 0 ~ 100% Load / 150-180 VAC: 0 ~ 80% Load / 110-150 VAC: 0 ~ 60% Load) |
| Frequency Range(Hz) |
44 ~ 66Hz (auto sensing) |
| Input Power Factor |
≧ 0.98 @ nominal voltage 100% linear load |
| OUTPUT |
Capacity(VA/W) |
1000 / 900 |
2000 / 1800 |
3000 / 2700 |
| Voltage(VAC)*** |
230VAC, adjustable to 200 / 208 / 220 / 230 / 240VAC
(derated to 90% capacity for 200 / 208VAC) |
| Output Power Factor*** |
0.9 |
| Output Voltage Distortion |
≦3% @ 100% linear load |
≦ 4% @ 100% PF=0.9 non-linear load
≦ 7% @ 100% PF=0.7 non-linear load |
| Output Voltage Regulation |
± 1% |
| Frequency Range(Hz) |
50 / 60Hz ± 1Hz or ± 3Hz (selectable) |
| Crest Factor Ratio |
3:1 |
| Output Waveform |
Pure sine wave |
| EFFICIENCY |
Line Mode |
Up to 91% |
| High Efficiency Mode |
Up to 96% |
| BATTERY |
Battery Type |
VRLA, sealed lead acid maintenance free |
| Capacity and Number |
12V / 7Ah x 2 |
12V / 7Ah x 3 |
12V / 7Ah x 4 |
12V / 7Ah x 6 |
12V / 7Ah x 6 |
| Voltage(Vdc) |
24 |
36 |
48 |
72 |
72 |
| Typical Charger Time |
6 hours recover to 90% capacity |
| Extend Battery Bank |
Standard Model |
NO |
NO |
NO |
NO |
NO |
| Extend Backup Model PF0.9.0.8 |
+ 1xEBC (4x7Ah Battery) |
+ 1xEBC (6x7Ah Battery) |
+ 1xEBC (8x7Ah Battery) |
+ 1xEBC (12x7Ah Battery) |
+ 1xEBC (12x7Ah Battery) |
| Extend Backup Model PF0.7 |
No limitation |
No limitation |
No limitation |
No limitation |
No limitation |
| Transfer Time |
Line Mode to Backup Mode |
0ms |
| Inverter to Bypass |
4 ms (Typical) |
| INDICATOR |
LCD |
Normal, Battery, Bypass, Self-Test, Battery Weak & Bad, Site Wiring Fault , Fault, Overload, and Load/Battery Level |
| LED (Option) |
Optional |
| Self-Diagnostics |
Upon Power-on, Front Panel Setting and Software Control, 24Hours Routine Check |
| ALARM |
Audible or Visual |
Battery Mode, General Alarm, Overload, Fault |
| PROTECTION |
Full Protection |
Short Circuit, ABDM, Over Temperature, EPO (Option) |
| FUNCTION |
Multi-Mode |
Normal / ECO / CVCF |
| DC Start |
Yes |
| Programmable Outlet (Option) |
Support 2 outlets |
| PHYSICAL (Tower) |
Dimensions (WxHxD in mm/inch) |
147 x 224 x 308
/ 5.79 x 8.82 x 12.1 |
147 x 224 x 388
/ 5.79 x 8.82 x 15.3 |
192 x 249.9 x 425.8 / 7.56 x 9.84 x 16.76 |
| Net Weight (kgs/lbs) |
8.85 / 19.51 |
10.95/ 24.14 |
16.2 / 37.71 |
20.4 / 44.79 |
22.8 / 50.26 |
| PHYSICAL (RT) |
Dimensions (WxHxD in mm/inch) |
440 x 88 x 455 / 17.32 x 3.46 x 17.91 |
440 x 88 x 600 / 17.32x 3.46x 23.62 |
| Net Weight (kgs/lbs) |
10.7 / 23.6 |
12.8/ 28.21 |
18.2 / 40.12 |
22.4 / 49.38 |
24.8 / 54.67 |
| ENVIRONMENT |
Operation Temperature |
0 ~ 40°C / 32 ~ 104℉ |
| Storage Temperature |
-10 ~ 50°C / 14 ~ 122℉ |
| Operation Humidity |
0 ~ 90%RH, non-condensing |
| Altitude |
1000m / 3280ft without derating |
| Noise Level |
≦ 45dBA @ 1 meter front |
≦ 50dBA @ 1 meter front |
| COMMUNICATION |
Standard Type |
RS-232, USB |
| LA Type |
RS-232 |
| Interface (Option) |
EPO/ROO, 2nd RS-232, USB, RS485, Dry contact relay, SNMP/WEB card |
| Compatible Platforms |
Microsoft Windows series, Linux, Mac, etc. |
STANDARDS &
CERTIFICATIONS** |
Safety |
IEC EN 62040-1 |
| EMC |
IEC EN 62040-2, EN61000-3-2, EN61000-3-3 |
| Marks |
CE |
| * Specifications subject to change without notice, and the final explanation rights are reserved by Ablerex. |
| ** Baresed on load precentage. |
| *** The same technical specification may be sold in diferent countries under different model names, please consult Ablerex for more information. |
