| MODEL |

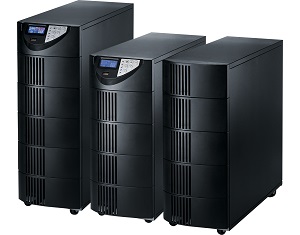

TOWER |
MSII 4500 / 4500C |
MSII 6000 / 6000C |
MSII 8000 / 8000P |
MSII 10000 / 10000P |
MSII 15000P |
MSII 20000P |
| RT |
MSII 4500RT |
MSII 6000RT |
MSII 8000RT / 8000RTP |
MSII 10000RT / 10000RTP |
MSII 15000RTP |
MSII 20000RTP |
| INPUT |
Phase |
(1Φ) Line + Neutral + Ground |
(1Φ) Line + Neutral + Ground /
(3Φ) R, S, T + Neutral + Ground |
(3Φ) R, S, T + Neutral + Ground |
| Voltage Range(VAC)** |
160 ~ 280VAC (1Φ) |
160 ~ 280VAC (1Φ) / 277 ~ 485VAC (3Φ) |
277 ~ 485VAC (3Φ) |
| Frequency Range(Hz) |
45 ~ 65Hz (auto sensing) |
| Input Current Distortion |
4.5K ~ 10K 1Φ: < 6% @ 100% linear load (w/o transformer)
8K ~ 10KP 3Φ: < 30% @ 100% linear load (w/o transformer) |
< 30% @ 100% linear load (w/o transformer) |
| Input Power Factor |
≧ 0.99 (1Φ) / ≧ 0.95 (3Φ) @ nominal voltage 100% linear load |
| OUTPUT |
Capacity(VA/W) |
4500 / 4050 |
6000 / 5400 |
8000 / 7200 |
10000 / 9000 |
15000 / 13500 |
20000 / 18000 |
| Voltage(VAC)*** |
230VAC, adjustable to 200 / 208 / 220 / 230 / 240VAC, 208 / 120VAC (option for 4500 ~ 10000VA) |
| Output Power Factor*** |
0.9 |
| Output Voltage Distortion |
< 3% @ 100% linear load (w/o transformer) |
| < 7% @ 100% non-linear load (w/o transformer) |
| Output Voltage Regulation |
± 2% |
| Frequency Range(Hz) |
50 / 60Hz ± 1Hz or ± 3Hz (selectable) |
| Frequency Stability @ Inverter Free-Running |
± 0.2% |
| Crest Factor Ratio |
3:1 |
| Output Waveform |
Pure sine wave |
| Transfer Time |
Line to Backup |
0ms |
| Inverter to Bypass |
static bypass 0ms / manual bypass < 2ms |
| EFFICIENCY |
Line Mode |
Up to 91% (w/o transformer) |
| High Efficiency Mode |
Up to 92% (w/o transformer) |
Up to 93% (w/o transformer) |
Up to 96% (w/o transformer) |
| BATTERY |
Battery Type |
VRLA, sealed lead acid maintenance free |
| Capacity and Number |
TOWER |
4.5K & 6K: 12V / 7Ah x 20
4500C & 6000C: 12V / 5Ah x 20 |
12V / 7Ah x 20 |
12V / 9Ah x 20 |
12V / 9Ah x 60 EBC (Option)
12V / 12Ah x 40 EBC (Option) |
| RT (Option) |
12V / 7Ah x 20 EBC |
12V / 7Ah x 20 EBC |
12V / 9Ah x 20 EBC |
12V / 9Ah x 20 EBC |
| Voltage(Vdc) |
240 |
| Typical Charger Time |
4 hours recover to 90% capacity |
6 hours recover to 90% capacity |
| INDICATOR |
Status on LED + LCD |
Normal / Backup / ECO / Bypass mode, Battery Low/Weak/Disconnect, Overload, Transferring with Interruption, UPS Fault |
| Readings on LCD |
Input / Output volatge, Input / Output frequency, Load percentage, Battery voltage, Inner cabinet temperature, Status / Error message |
| Self-Diagnostics |
Upon power-on, Front panel setting and Software control, 24Hours routine check |
| ALARM |
Audible or Visual |
Line failure, Battery low, Transfer to bypass and System fault |
| PROTECTION |
Full Protection |
Overload, Over temperature, Short circuit, ABDM, Overcharge and EPO |
| FUNCTION |
Multi-Mode |
Normal / ECO / CVCF |
| DC Start |
Yes |
| Parallel Capacity |
Up to 4 units |
| Parallel Redundancy |
3+1 |
| PHYSICAL |
Dimensions (WxHxD in mm/inch)
(Standard / Hot Swappable / RT Type) |
w/o Transformer |
4.5K & 6K: 290 x748 x 645 / 11.5 x 29.5 x 25.4
4500C & 6000C: 440 x 176 x 680 / 17.3 x 6.9 x 26.8 |
290 x748 x 645 / 11.5 x 29.5 x 25.4 |
| with Transformer |
290 x 748 x 645 / 11.5 x 29.5 x 25.4 |
290 x 881 x 645 / 11.5 x 34.7 x 25.4 |
320 x 1018 x 670 / 12.6 x 40 x 26.4 |
| RT |
Standard Type: 440 x 88 x 680 / 17.3 x 3.5 x 26.8
Short Type: 440 x 132 x 550 / 17.3 x 5.2 x 21.7 |
440 x 132 x 680 / 17.3 x 5.2 x 26.8 |
440 x 220 x 720 / 17.3 x 8.7 x 28.4 |
Ref Net Weight (kgs/lbs)
(Standard / Hot Swappable / RT Type) |
w/o Transformer |
4.5K & 6K: 86 / 190
4500C & 6000C: 52 / 115 |
8K: 87 / 192 |
10K: 96 / 212 |
60 / 133 |
| 8KP: 92 / 203 |
10KP: 101/223 |
| with Transformer |
139 / 307 |
8K: 140 / 309 |
10K: 149 / 329 |
151 / 332 |
| 8KP: 145 / 320 |
10KP: 154 / 340 |
| RT |
Standard Type: 24 / 53
Short Type: 17.5 / 39 |
8K/10K: 26 / 58
8KP/10KP: 28 / 62 |
36 / 80 |
Dimensions (WxHxD in mm/inch)
(Mini Tower 1Φ/1Φ Model) |
w/o Transformer |
440 x 220 x 630 / 17.3 x 8.7 x 24.8 |
— |
Ref Net Weight (kgs/lbs)
(Mini Tower 1Φ/1Φ Model) |
w/o Transformer |
71.5 / 158 |
8K/10K: 74.5 / 165 |
— |
Dimensions (WxHxD in mm/inch)
(Mini Tower 3Φ/1Φ Model) |
w/o Transformer |
— |
— |
290 x 748 x 503 / 11.5 x 29.5 x 19.8 |
Ref Net Weight (kgs/lbs)
(Mini Tower 3Φ/1Φ Model) |
w/o Transformer |
— |
— |
42 / 93 |
| ENVIRONMENT |
Operation Temperature |
0 ~ 40°C / 32 ~ 104℉ |
| Storage Temperature |
-10 ~ 50°C / 14 ~ 122℉ |
| Operation Humidity |
90%RH, non-condensing |
| Altitude |
2000m / 6562ft without derating |
| Noise Level |
≦ 50dBA @ 1 meter front |
≦ 60dBA @ 1 meter front |
| COMMUNICATION |
Standard |
RS-232 |
| Interface (Option) |
2nd RS-232, USB, RS485, Dry contact relay, SNMP/WEB card |
| Compatible Platforms |
Microsoft Windows series, Linux, Mac, etc. |
STANDARDS &
CERTIFICATIONS** |
Safety |
EN62040-1-1, UL1778 |
EN62040-1-1 |
| EMC |
EN62040-2, EN61000-3-4, EN61000-3-5, FCC Class A |
EN62040-2, EN61000-3-4, EN61000-3-5 |
| Marks |
CE, cUL, UL *** |
CE |
|
| * Specifications subject to change without notice, and the final explanation rights are reserved by Ablerex. |
| ** Baresed on load precentage. |
| *** The same technical specification may be sold in diferent countries under different model names, please consult Ablerex for more information. |
| **** Battery capacity can be changed. |
|
